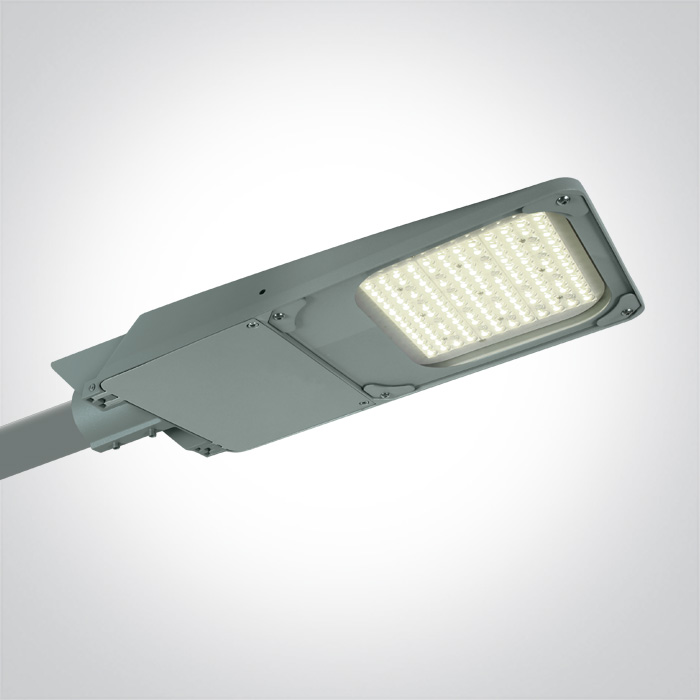

Street Lighting – 70116C/G/C
Out of stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

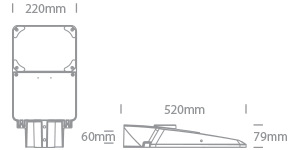

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
21 Industrial & Floodlights
Family
Street Lighting
Colour
Grey
Material
Aluminium + Glass
Shape
Rectangular
Length
520 mm
Width
220 mm
Height
79 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
Yes
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
No
Outdoor
Yes
Adjustable
No
Ik Rating
9
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
120W
Ip Rating
IP66
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
1020mA
Excluding Gear Voltage
112V
Excluding Gear Power Watts
114,24W
Excluding Gear Ip Rating
IP66
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3030
Excluding Gear Led Brand
Seoul
Excluding Gear Led Number
126
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
100-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
109,14-218,28W
Specifications Power Factor
0,97
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current
1020mA
Specifications Output Voltage
107-214V
Specifications Ip Rating
IP67
Specifications Safety Class
I
Specifications Dimmable
No
Specifications Housing Material
Metal
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Specifications Manufacturer
MOSO
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
16800lm
Data Light Efficiency
140lm/W
Data Cri
80
Data Beam Angle
140°x80°
Data Darklight
No
Packing Info
Info Box Weight Kg
5.200kg
Info Pcs Per Box
1
Info Barcode Ean Number
5291889074243
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
Average Lifetime
50000hours
