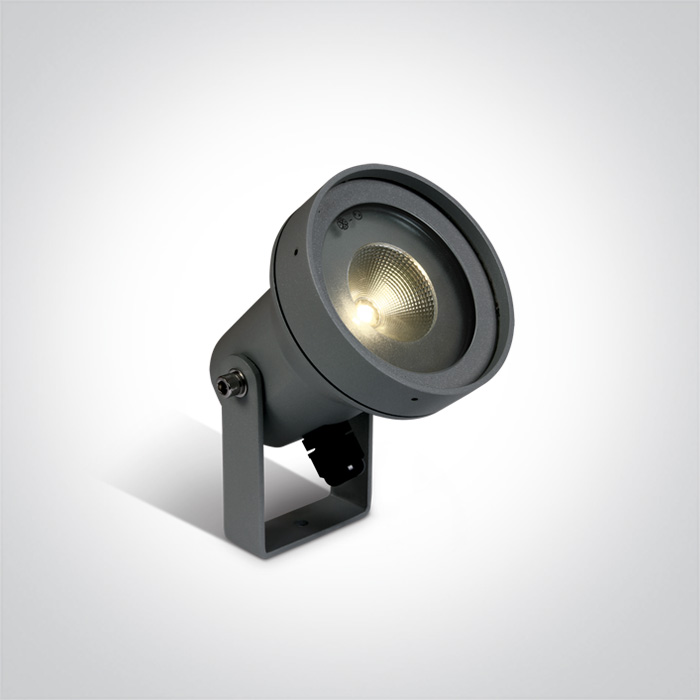

The COB Garden Round Spots Die cast – 67196B/AN/W
1 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

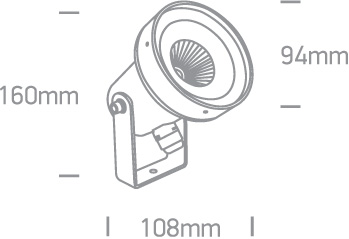

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
20 Garden & Underwater
Family
The COB Garden Round Spots Die cast
Colour
Anthracite
Material
Die Cast
Diffuser Material
Glass
Shape
Circular
Height
160 mm
Diameter
94mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor
Yes
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
No
Outdoor
Yes
Adjustable
1 Direction
Ik Rating
6
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
6W
Ip Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
150cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
500mA
Excluding Gear Voltage
10V
Excluding Gear Power Watts
5W
Excluding Gear Ip Rating
IP65
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Edison
Excluding Gear Led Number
1
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
3-6W
Specifications Power Factor
0,5
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
500mA,
Specifications Voltage Range Vr
VR@500mA=6-12V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Protection
Short Circuit
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm white
Data Colour Temperature
3000K
Data Lumen Output
450lm
Data Light Efficiency
75lm/W
Data Cri
85
Data Beam Angle
35°
Data Darklight
No
Packing Info
Info Box Length Cm
22cm
Info Box Width Cm
11cm
Info Box Height Cm
14,5cm
Info Box Weight Kg
0.966kg
Info Pcs Per Box
6
Info Barcode Ean Number
5291889040590
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
