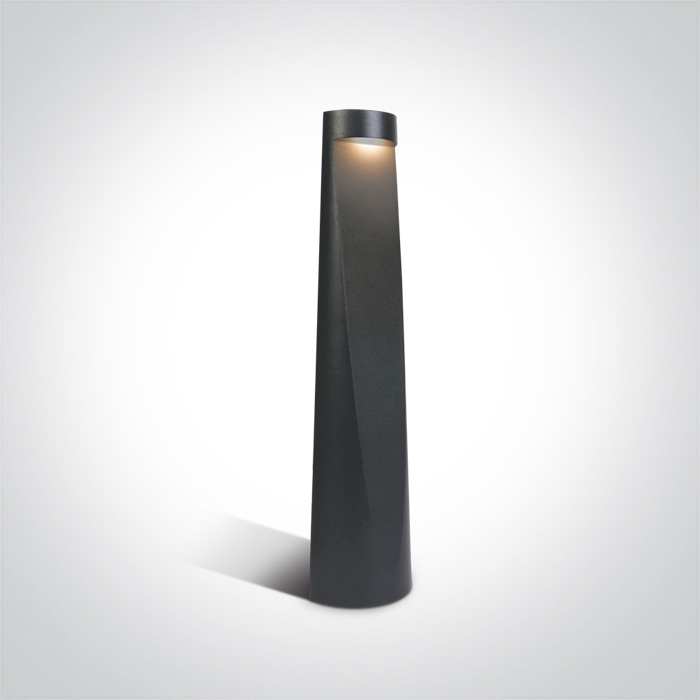

LED Bollards Die cast - 67358/AN/W
IP Rating IP65

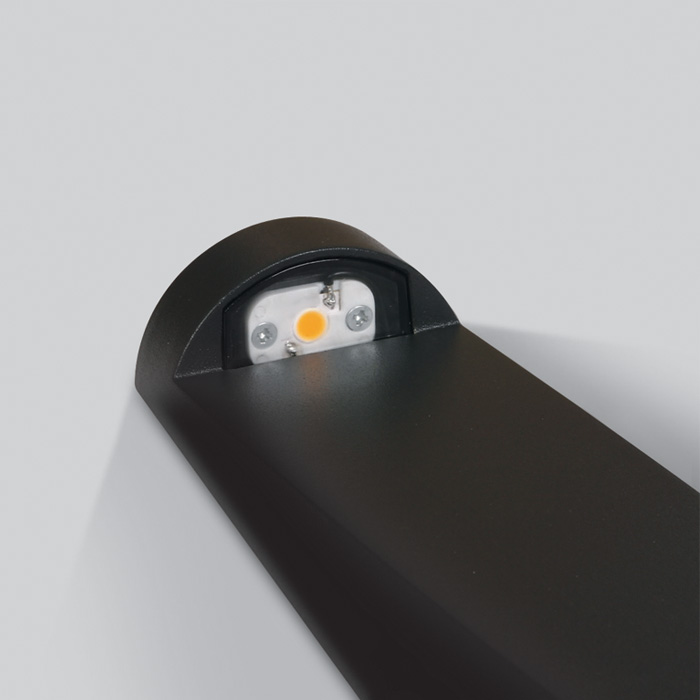

LED Bollards Die cast - 67358/AN/W - Image 2
DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
20 Garden & Underwater
Family
LED Bollards Die cast
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
100 mm
Width
50 mm
Height
400 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
Yes
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
No
Outdoor
Yes
Adjustable
No
Ik Rating
5
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
7W
Ip Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
700mA
Excluding Gear Voltage
9V
Excluding Gear Power Watts
6,3W
Excluding Gear Ip Rating
IP65
Excluding Gear Light Source
LED built in
Excluding Gear Led Brand
Cree
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
100-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
4,8-9,6W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
700mA,
Specifications Voltage Range Vr
VR@700mA=6-12V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Protection
Short Circuit
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
262lm
Data Light Efficiency
37,42lm/W
Data Cri
80
Data Beam Angle
49°
Data Darklight
No
Packing Info
Info Box Length Cm
43,5cm
Info Box Width Cm
8cm
Info Box Height Cm
13cm
Info Box Weight Kg
1.037kg
Info Pcs Per Box
8
Info Barcode Ean Number
5291889034995
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years

LED Bollards Die cast – 67358/AN/W

67358/AN/W

66 in stock

  • 7W LED Bollard, IP65 for Garden illumination
  • Supplied with non-dimmable LED driver
  • Complies with standard EN60598-1 and any other specificstandards.
