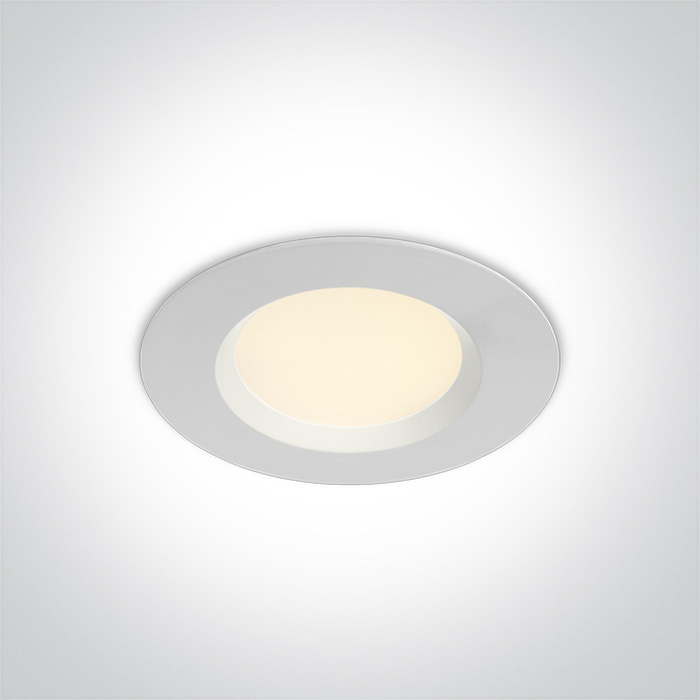

UGR19 CCT V Range – 10107UV/W/V
271 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

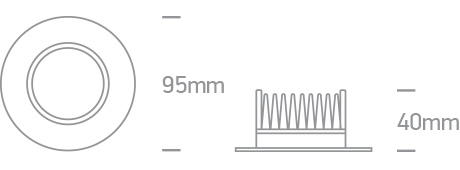

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
06 Downlights Fixed LED
Family
UGR19 CCT V Range
Colour
White
Material
Die Cast
Shape
Circular
Height
40 mm
Diameter
95mm
Cutout Hole Diameter
70mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
60mm
Indoor
Yes
Outdoor
No
Adjustable
No
Ik Rating
4
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
7W
Ip Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
180mA
Excluding Gear Voltage
38V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
6,84W
Excluding Gear Ip Rating
IP44
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Epistar
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
5,4-8,4W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current
180mA
Specifications Output Voltage
25-42V
Specifications Ip Rating
IP44
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Protection
Short Circuit and Overload
Specifications Fast Connector
No
Specifications Manufacturer
Lifud
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Daylight - Cool White - Warm White
Data Colour Temperature
3000K-4000K-6000K
Data Lumen Output
525lm
Data Light Efficiency
75lm/W
Data Cri
80
Data Darklight
No
Data Ugr
19
Packing Info
Info Box Weight Kg
0.222kg
Info Pcs Per Box
40
Info Barcode Ean Number
5291889064817
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
Average Lifetime
30000hrs
