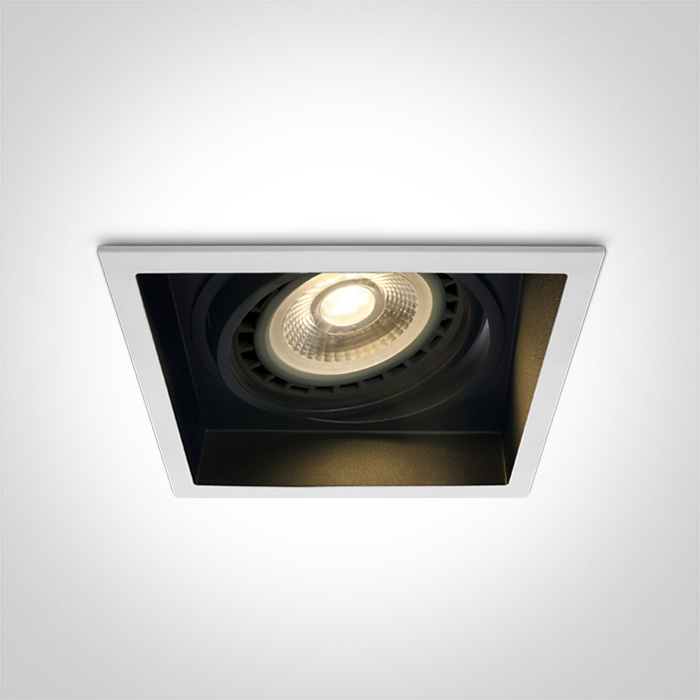

The R111 Shop Range Die cast - 51110AD/B
IP Rating IP20
Darklight Yes

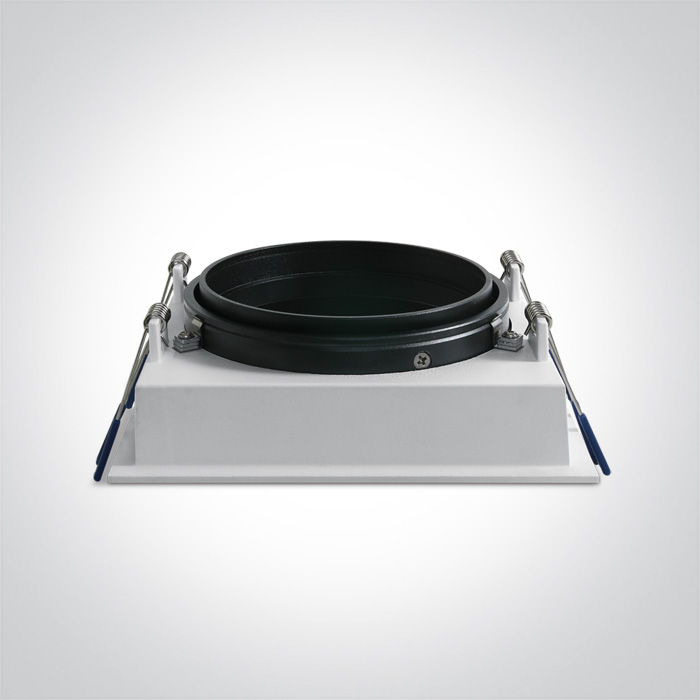

The R111 Shop Range Die cast - 51110AD/B - Image 2

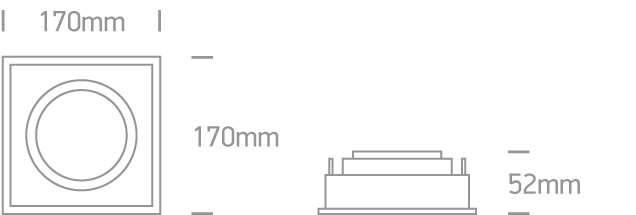

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
05 Downlights
Family
The R111 Shop Range Die cast
Colour
Black
Material
Die Cast
Shape
Rectangular
Length
170 mm
Width
170 mm
Height
52 mm
Cutout Hole Diameter
155mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
150mm
Indoor
Yes
Outdoor
No
Adjustable
2 Directions
Fire Rated
No
Electrical Characteristics
Gear Type
No
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
75W
Ip Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number Of Lamps
1
Cable Length
20cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Darklight
Yes
Packing Info
Info Box Length Cm
18,5cm
Info Box Width Cm
18cm
Info Box Height Cm
8,5cm
Info Box Weight Kg
0.675kg
Info Pcs Per Box
20
Info Master Carton Length Cm
41cm
Info Master Carton Width Cm
38cm
Info Master Carton Height Cm
45cm
Info Master Carton Weight Kg
13,5Kg
Info Barcode Ean Number
5291889057239
Customs
Tariff
9405413990
Energy Certificates - Warranty
Energy Consumption
0
Warranty
5 Years

The R111 Shop Range Die cast – 51110AD/B

51110AD/B

Out of stock

  • Recessed adjustable Dark light R111 downlight with GU10 lampholder
  • Complies with standard EN60598-1 and any other specific standards.
