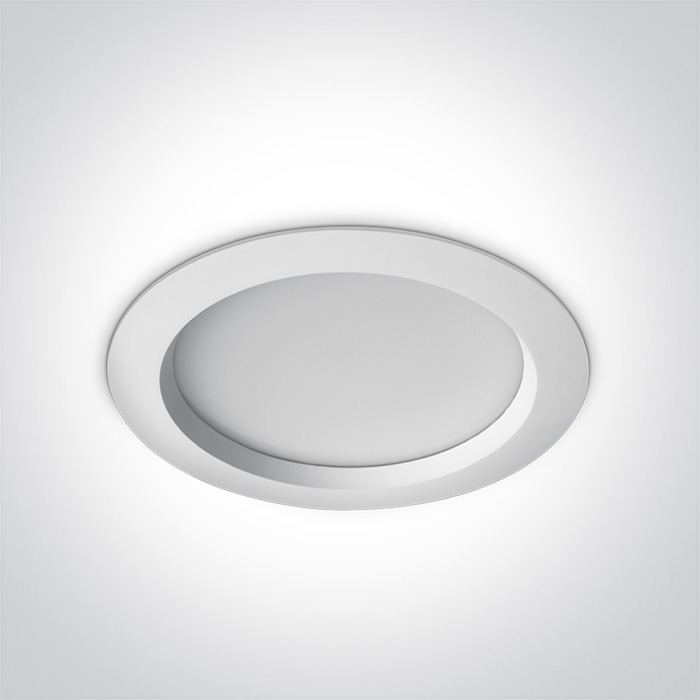

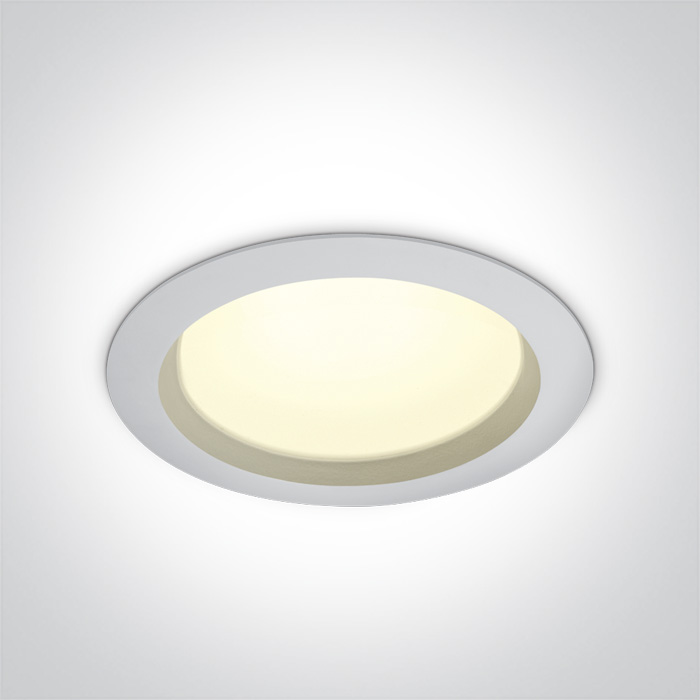

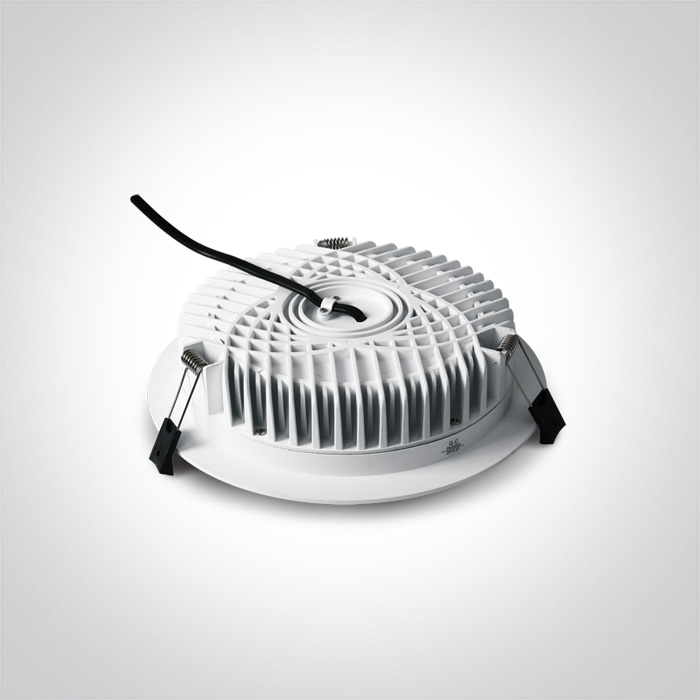

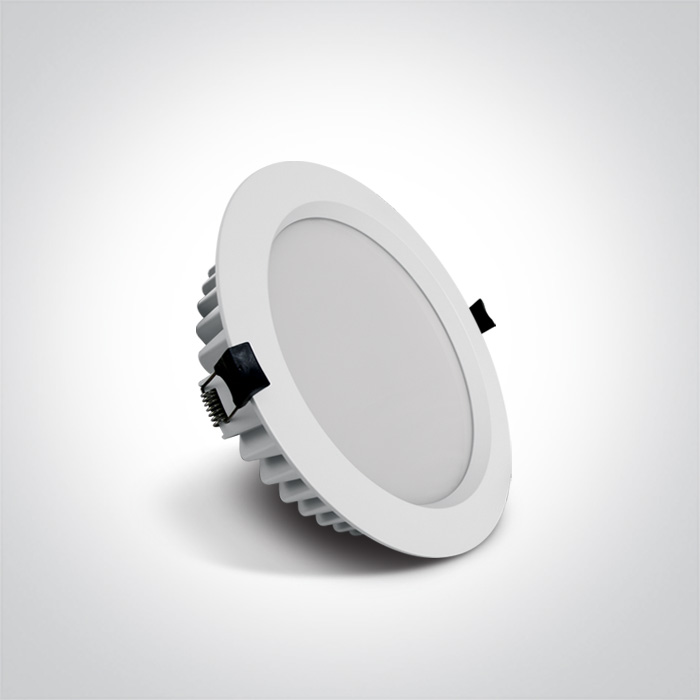

The IP54 Bathroom Downlights – 10125B/W/C
179 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

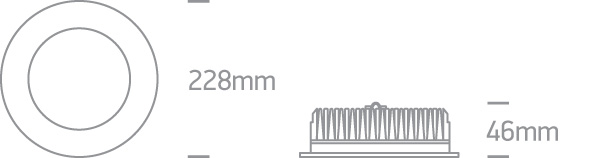

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
06 Downlights Fixed LED
Family
The IP54 Bathroom Downlights
Material
Die Cast
Diffuser Material
Plastic
Shape
Circular
Height
46 mm
Diameter
228mm
Cutout Hole Diameter
210mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
25W
Ip Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
720mA
Excluding Gear Voltage
32V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
22,5W
Excluding Gear Ip Rating
IP54
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Epistar
Excluding Gear Led Number
60
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
16,8-26,6W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current
720mA
Specifications Output Voltage
24-38V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
45°C
Specifications Operating Temperature
70°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Protection
Short Circuit and Overload
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Cool White
Data Lumen Output
2000lm
Data Light Efficiency
80lm/W
Data Cri
80
Data Beam Angle
90°
Data Darklight
No
Packing Info
Info Box Length Cm
26cm
Info Box Width Cm
26cm
Info Box Height Cm
7,5cm
Info Box Weight Kg
1.230kg
Info Pcs Per Box
10
Info Barcode Ean Number
5291890000000
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
Average Lifetime
40000hrs
