Downlights Fixed LED - 10113B/W/V
IP Rating IP54

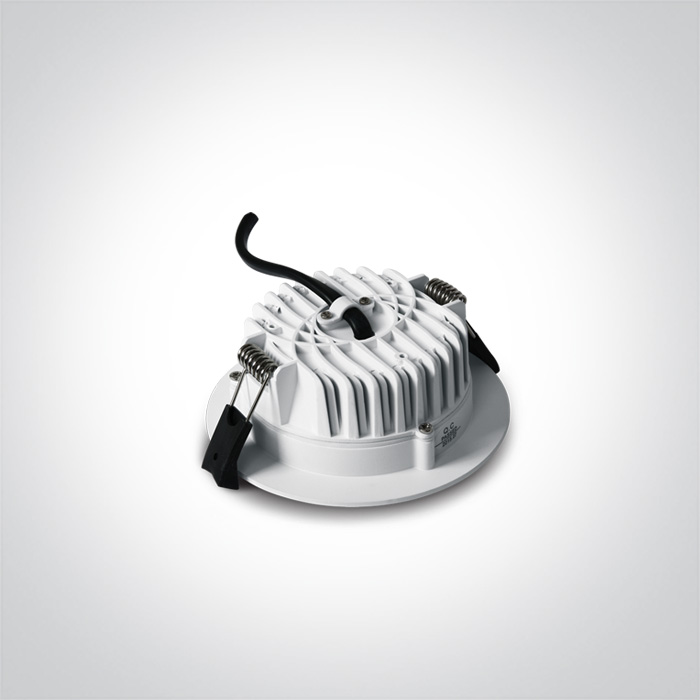

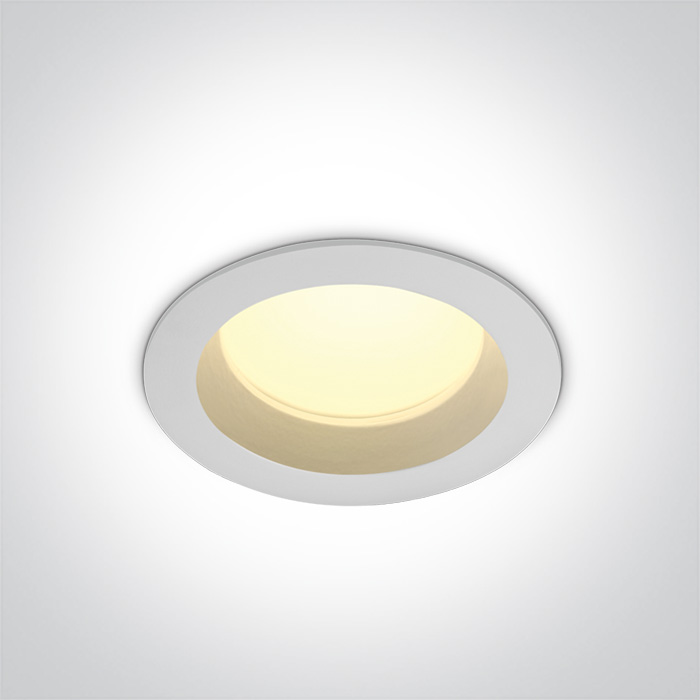

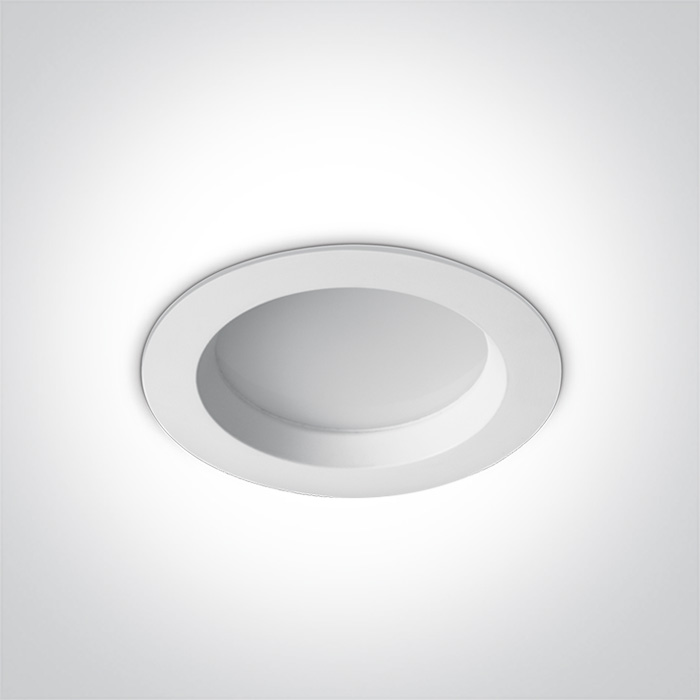

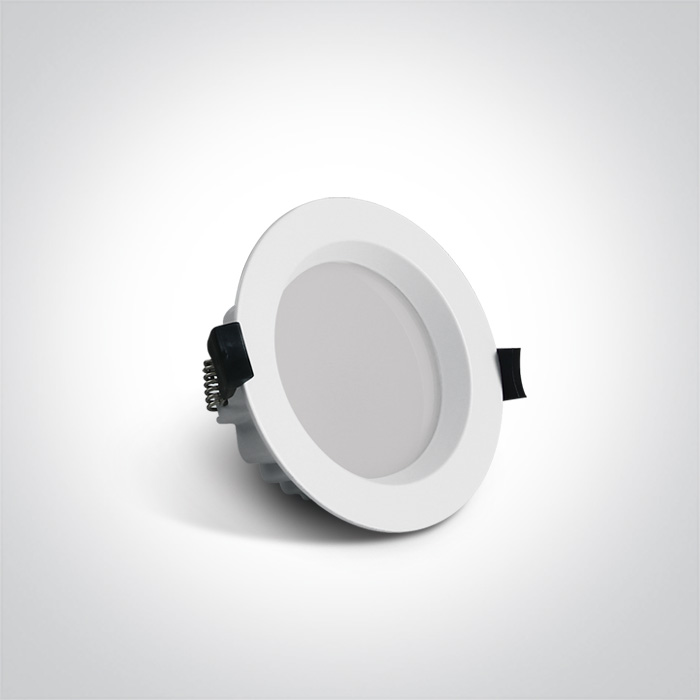

Downlights Fixed LED - 10113B/W/V - Image 2
Downlights Fixed LED - 10113B/W/V - Image 3
Downlights Fixed LED - 10113B/W/V - Image 4

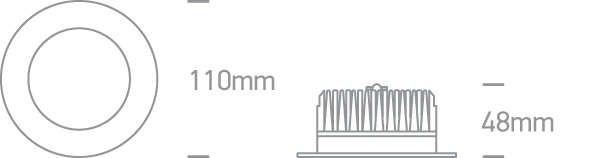

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
New 2025 Edition 2
Family
Downlights Fixed LED
Material
Die Cast
Diffuser Material
Plastic
Shape
Circular
Height
48 mm
Diameter
110mm
Cutout Hole Diameter
95mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
70mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
13W
Ip Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
300mA
Excluding Gear Safety Class
III
Excluding Gear Ip Rating
IP54
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current
300mA
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Lumen Output
950lm
Data Light Efficiency
73lm/W
Data Cri
80
Data Beam Angle
90°
Data Darklight
No
Packing Info
Info Box Length Cm
11,5cm
Info Box Width Cm
11,5cm
Info Box Height Cm
9cm
Info Box Weight Kg
0.312kg
Info Pcs Per Box
24
Info Barcode Ean Number
5291890000000
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years

Downlights Fixed LED – 10113B/W/V

10113B/W/V

52 in stock

  • 13W LED CCT Variable recessed downlight, IP54
  • Suitable for bathroominstallations
  • Complete with non-dimmable driver
  • Complies with standard EN60598-1 and any other specificstandards.
