The Frameless IP65 Range Die cast + PC – 10130CF

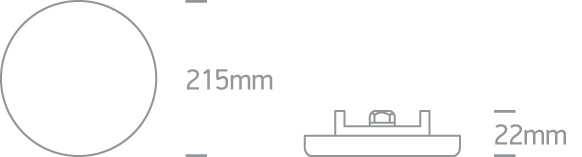

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
06 Downlights Fixed LED
Family
The Frameless IP65 Range Die cast + PC
Colour
White
Material
Die Cast
Diffuser Material
PC
Shape
Circular
Height
22 mm
Diameter
215mm
Cutout Hole Diameter
195mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
50mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Ik Rating
8
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
30W
Ip Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
700mA
Excluding Gear Voltage
36V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
25,2W
Excluding Gear Ip Rating
IP65
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 4014
Excluding Gear Led Brand
Zhaochi
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
21-28W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
700mA,
Specifications Voltage Range Vr
VR@700mA=30-40V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Fast Connector
No
Specifications Manufacturer
KEGU
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
2400lm
Data Light Efficiency
80lm/W
Data Cri
80
Data Beam Angle
120°
Data Darklight
No
Packing Info
Info Box Length Cm
28cm
Info Box Width Cm
25cm
Info Box Height Cm
3cm
Info Box Weight Kg
0.770kg
Info Pcs Per Box
20
Info Master Carton Length Cm
N/A
Info Master Carton Width Cm
N/A
Info Master Carton Height Cm
N/A
Info Master Carton Weight Kg
N/A
Info Barcode Ean Number
5291889057130
Customs
Tariff
9405413990
Energy Certificates - Warranty
Energy Consumption
30kWh/1000h
Energy Class
F
Warranty
5 Years
