IP Rating IP40 | IP20 | IP40 | IP40 | IP20 | IP40
RELATED PRODUCTS

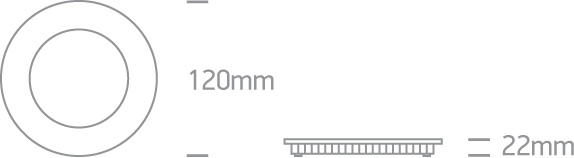

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
06 Downlights Fixed LED
Family
The 3-12W Round Recessed Panels Die cast
Colour
Black
Material
Die Cast
Diffuser Material
Acrylic
Shape
Circular
Height
22 mm
Diameter
120mm
Cutout Hole Diameter
108mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
50mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
8W
Ip Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
300mA
Excluding Gear Voltage
23V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
6,9W
Excluding Gear Ip Rating
IP40
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Epistar
Excluding Gear Led Number
42
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No

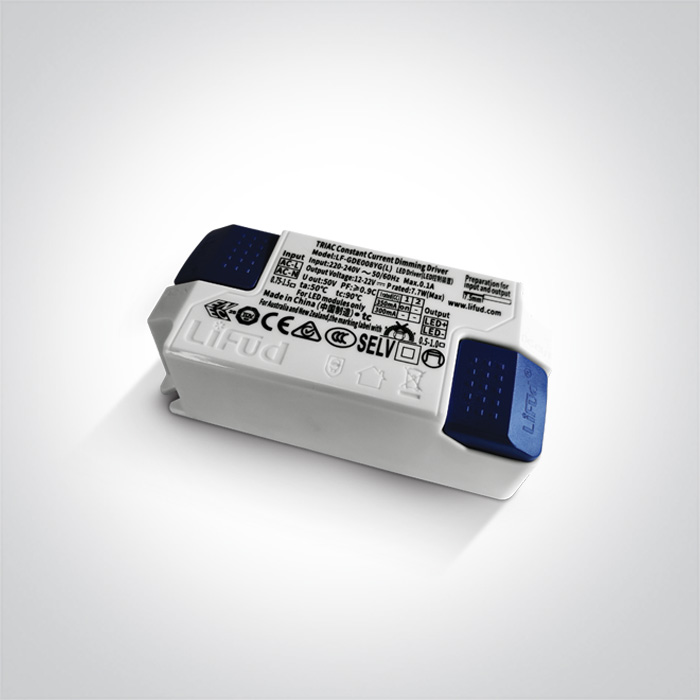

Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
4,2-7,2W
Specifications Power Factor
0,6
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current
300mA
Specifications Output Voltage
14-24V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
50°C
Specifications Operating Temperature
75°C
Specifications Housing Material
Plastic
Specifications Fast Connector
No
Specifications Manufacturer
Lifud
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
560lm
Data Light Efficiency
70lm/W
Data Cri
80
Data Beam Angle
120°
Data Darklight
No
Packing Info
Info Box Length Cm
18,5cm
Info Box Width Cm
3,1cm
Info Box Height Cm
13cm
Info Box Weight Kg
0.242kg
Info Pcs Per Box
40
Info Barcode Ean Number
5291889052463
Customs
Tariff
9405119090
Energy Certificates - Warranty
Warranty
2 Years
Average Lifetime
30000 hours

The 3-12W Round Recessed Panels Die cast – 10108FA

10108FA
10108FA
From £17.50

Stock:

UK Warehouse: 1 In stock
Main Warehouse: 288 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.
