The 16-30W Square Recessed Panels CCT V – 50122FA

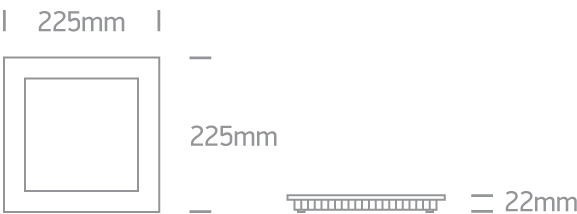

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
06 Downlights Fixed LED
Family
The 16-30W Square Recessed Panels CCT V
Colour
White
Material
Die Cast
Diffuser Material
Acrylic
Shape
Rectangular
Length
225 mm
Width
225 mm
Height
22 mm
Cutout Hole Width
210mm
Cutout Hole Height
210mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
50mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
22W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
550mA
Excluding Gear Voltage
N/A
Excluding Gear Safety Class
III
Excluding Gear Power Watts
N/A
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Epistar
Excluding Gear Led Number
168
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
13,75-23W
Specifications Power Factor
N/A
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
550mA,
Specifications Voltage Range Vr
VR@550mA=25-42V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
50°C
Specifications Operating Temperature
75°C
Specifications Housing Material
Plastic
Specifications Fast Connector
No
Specifications Manufacturer
Lifud
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
CCT V
Data Colour Temperature
3000K-4000K-5700K
Data Lumen Output
2200lm
Data Light Efficiency
100lm/W
Data Cri
80
Data Beam Angle
120°
Data Darklight
No
Packing Info
Info Box Length Cm
N/A
Info Box Width Cm
N/A
Info Box Height Cm
N/A
Info Box Weight Kg
0.687kg
Info Pcs Per Box
16
Info Barcode Ean Number
5291889078982
Customs
Tariff
9405119090
Energy Certificates - Warranty
Warranty
3 Years
Average Lifetime
36000 hours
