Downlights Fixed LED – 10109D

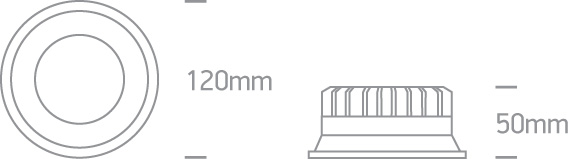

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
New 2025 Edition 2
Family
Downlights Fixed LED
Colour
Black
Material
Die Cast
Shape
Circular
Height
50 mm
Diameter
120mm
Cutout Hole Diameter
110mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
70mm
Indoor
Yes
Outdoor
No
Adjustable
No
Ik Rating
7
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
12W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
300mA
Excluding Gear Voltage
N/A
Excluding Gear Safety Class
III
Excluding Gear Power Watts
N/A
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD
Excluding Gear Led Brand
N/A
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
N/A
Specifications Power Factor
N/A
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
N/A
Specifications Voltage Range Vr
N/A
Specifications Output Current
300mA
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
N/A
Specifications Housing Material
N/A
Specifications Fast Connector
No
Specifications Manufacturer
N/A
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
N/A
Data Colour Temperature
3000K-4000K-5000K
Data Lumen Output
1000lm
Data Light Efficiency
83lm/W
Data Cri
90
Data Beam Angle
100°
Data Darklight
Yes
Packing Info
Info Box Length Cm
N/A
Info Box Width Cm
N/A
Info Box Height Cm
N/A
Info Box Weight Kg
0.360kg
Info Pcs Per Box
40
Info Barcode Ean Number
5291889081159
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
