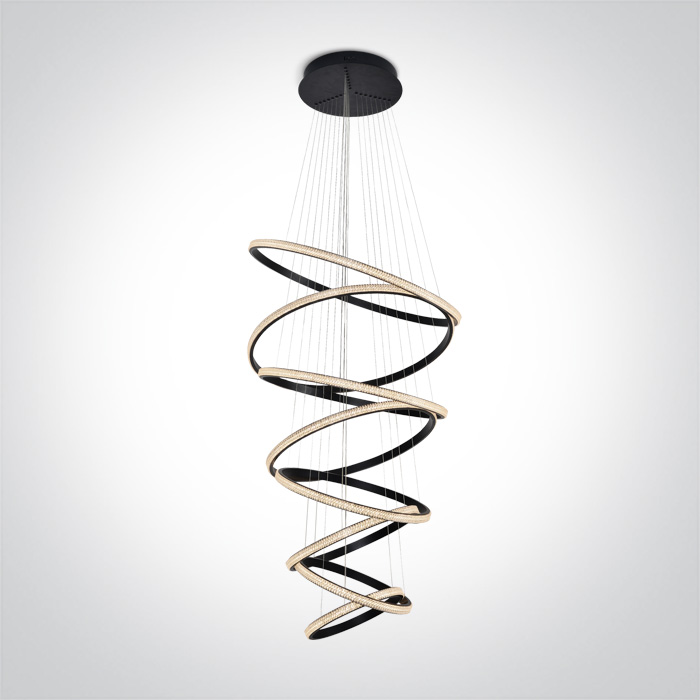

The Crystal Swirl Range – 63054C/B
8 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

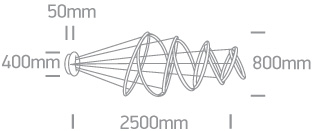

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
16 Decorative
Family
The Crystal Swirl Range
Colour
Black
Material
Aluminium + Steel
Diffuser Material
Crystal
Shape
Circular
Height
2500 mm
Diameter
800mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
Yes
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
150W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Voltage
Excluding Gear Input Voltage
24V DC
Excluding Gear Safety Class
III
Excluding Gear Power Watts
150W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Epistar
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
150W
Specifications Power Factor
0,9
Specifications Constant Voltage
Yes
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
Yes
Specifications 48v
No
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Specifications Manufacturer
ANWAY
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
8500lm
Data Light Efficiency
50lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Weight Kg
10.900kg
Info Pcs Per Box
1
Info Barcode Ean Number
5291889065685
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
